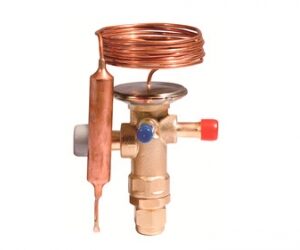

RFGD series thermostatic expansion valves are used to
regulate refrigerant flow rate into the evaporator while
controlling the refrigerant´s superheat at the outlet of
the evaporator. They can be used for various refrigerants
under all working conditions. Typical applications are
refrigeration systems like commercial refrigerators and
freezers, ice makers, air conditioners and dehumidifiers at
various evaporation temperatures.
- • COMPACT DESIGN WITH FIXED ORIFICE
• ALL COPPER CONNECTIONS
• VALVES WITH MOP FUNCTION CAN BE PROVIDED TO ASSURE RELIABLE COMPRESSOR OPERATION
• BALANCED PORT DESIGN FOR STABLE OPERATION
• BI-DIRECTIONAL CONTROL
• THERMAL SENSING BULB UTILIZES CROSS CHARGE TECHNOLOGY, PROVIDING CONSISTENT SUPERHEAT
OVER THE WIDE EVAPORATOR TEMPERATURE RANGE
- • Applicable for all common HCFC and HFC refrigerants such as: R-22, R-134a, R-404A, R-407C, R-507
• Applicable ambient temperatures: -30°F to +130°F
• Fluid temperature range: -40°F to +158°F
• Maximum operating pressure:
– R-134a – 305 psig
– R-22, R-407C – 405 psig
– R-404A / R-507 – 505 psig
• Certifications: UL/CSA and PED declaration
• RFGD valves available in straight shape with adjustable
superheat
• RFGD Valves are available with the following solder connections:
– Inlet 3/8” ODF/ Outlet 5/8” ODF or
– Inlet 1/2” ODF/ Outlet 7/8” ODF or
– Inlet 5/8” ODF/ Outlet 7/8” ODF
• RFGD valves are available with 3 different thermostatic charges
having the following temperature ranges:
– from -40°F to 50°F
– from -40°F to 23°F
– from -76°F to -13°F
• Equalization port available as option:
– 1/4” ODF
• Capillary tube length 5 ft as standard. Different length
customizable on request.
• Standard MOP values:
– T. Range -40°F to 50°F: MOP 59°F or non-MOP
– T. Range -40°F to 23°F: MOP 32°F
– T. Range -76°F to -13°F: MOP -4°F
Position
Number |
Model Designation Legend | ||
Product Code | Product Series | ||
1 | RFGD | Model number | |
Refrigerant | Description | ||
1 | R-22 | ||
2 | R-407C | ||
2 | 3 | R-404A / R-507 | |
4 | R-134a | ||
5 | R-410A | ||
3 | Pressure Equalization | Description | |
E | External equalizer | ||
(Omitted) | Internal equalizer | ||
4 | Valve Size | Internal Orifice Size | |
From 1 to 6 | Valve size: proportional to the orifice size and to the nominal capacity | ||
Connections Type | Description | ||
3 | Inlet 3/8″ / outlet 5/8″ | ||
5 | 4 | Inlet 1/2″ / outlet 7/8″ | |
5 | Inlet 5/8″ / outlet 7/8″ | ||
6 | Miscellaneous | Description | |
xxx | Digits for additional information
e.g. static superheat, MOP, Bleed… |
Position Numbe | r | According to Model Designation Legend | |||||
1 | 2 | 3 | 4 | 5 | 6 | ||
RFGD | 04 | E | 3 | 4 | xxxx | a a a a a a | Thermostatic expansion valve model |
RFGD | 04 | E | 3 | 4 | xxxx | Refrigerant: R-134a | |
RFGD | 04 | E | 3 | 4 | xxxx | With external equalizer | |
RFGD | 04 | E | 3 | 4 | xxxx | Capacity: Valve and orifice size 3 | |
RFGD | 04 | E | 3 | 4 | xxxx | Connection sizes: Inlet 1/2” ODF, outlet 7/8” | |
RFGD | 04 | E | 3 | 4 | xxxx | Digits for additional information |
R-22 | R-407C2) | R-404A / R-507 | R-134a | R-410A | |||||
Model Name3) | Capacity
(tons) |
Model Name3) | Capacity
(tons) |
Model Name3) | Capacity
(tons) |
Model Name3) | Capacity
(tons) |
Model Name3) | Capacity
(tons) |
RFGD 01-1 | RFGD 02-1 | RFGD 03-1 | RFGD 04-1 | RFGD 05-1 | |||||
3.0 | 3.1 | 2.0 | 1.8 | 3.5 | |||||
RFGD 01E-1 | RFGD 02E-1 | RFGD 03E-1 | RFGD 04E-1 | RFGD 05E-1 | |||||
RFGD 01-2 | RFGD 02-2 | RFGD 03-2 | RFGD 04-2 | RFGD 05-2 | |||||
4.0 | 4.2 | 2.8 | 2.5 | 4.5 | |||||
RFGD 01E-2 | RFGD 02E-2 | RFGD 03E-2 | RFGD 04E-2 | RFGD 05E-2 | |||||
RFGD 01-3 | 6.0 | RFGD 02-3 | 6.3 | RFGD 03-3 | 4.2 | RFGD 04-3 | 3.6 | RFGD 05-3 | 7.0 |
RFGD 01E-3 | RFGD 02E-3 | RFGD 03E-3 | RFGD 04E-3 | RFGD 05E-3 | |||||
RFGD 01-4 | 7.5 | RFGD 02-4 | 8.1 | RFGD 03-4 | 5.4 | RFGD 04-4 | 4.6 | RFGD 05-4 | 8.6 |
RFGD 01E-4 | RFGD 02E-4 | RFGD 03E-4 | RFGD 04E-4 | RFGD 05E-4 | |||||
RFGD 01-5 | RFGD 02-5 | RFGD 03-5 | RFGD 04-5 | RFGD 05-5 | |||||
9.0 | 9.4 | 6.4 | 5.5 | 10.6 | |||||
RFGD 01E-5 | RFGD 02E-5 | RFGD 03E-5 | RFGD 04E-5 | RFGD 05E-5 | |||||
RFGD 01-6 | 11.0 | RFGD 02-6 | 11.7 | RFGD 03-6 | 7.8 | RFGD 04-6 | 6.8 | RFGD 05-6 | 12.8 |
RFGD 01E-6 | RFGD 02E-6 | RFGD 03E-6 | RFGD 04E-6 | RFGD 05E-6 |
Note:
- Nominal capacities based at the following operating conditions: Condensing temperature: 100°F; Evaporating temperature +40°F; Liquid temperature 99°F; Static superheat: 7°F 2. R-407C data based on dew point conditions
- Model Name in this table is referred to the first 4 positions of the model designation
Refrigerant | Temperature Range | |||
-40°F to 50°F | -40°F to 23°F | -76°F to -13°F | ||
No MOP | MOP: 59°F | MOP: 23°F | MOP: -4°F | |
R-22 | On Request | |||
R-407C | Standard | On Request | ||
R-404A / R-507 | Standard | On Request | ||
R-134a | Standard | On Request | Not Available |
Model Name | |||||||
Ref. | Valve Body | Capacity Size
All Sizes |
Connections IN x OUT (ODF) | Pressure Equal. | Model Number | Product Number | |
Code | (inch) | (inch) | |||||
R-407C | RFGD 02E | 1 – | 3 | 3/8 x 5/8 | 1/4 | RFGD 02E-3.1-33 | RFG-25037 |
2 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 02E-4.2-34 | RFG-25038 | ||
3 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 02E-6.3-35 | RFG-25039 | ||
4 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 02E-8.1-36 | RFG-25040 | ||
5 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 02E-9.4-37 | RFG-25041 | ||
6 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 02E-11.7-38 | RFG-25042 | ||
R-404A
/ R-507 |
RFGD 03E | 1 – | 3 | 3/8 x 5/8 | 1/4 | RFGD 03E-2.0-39 | RFG-25043 |
2 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 03E-2.8-40 | RFG-25044 | ||
3 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 03E-4.2-41 | RFG-25045 | ||
4 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 03E-5.4-42 | RFG-25046 | ||
5 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 03E-6.4-43 | RFG-25047 | ||
6 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 03E-7.8-44 | RFG-25048 | ||
R-134a | RFGD 04E | 1 – | 3 | 3/8 x 5/8 | 1/4 | RFGD 04E-1.8-01 | RFG-25049 |
2 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 04E-2.5-02 | RFG-25050 | ||
3 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 04E-3.6-03 | RFG-25051 | ||
4 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 04E-4.6-04 | RFG-25052 | ||
5 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 04E-5.5-49 | RFG-25053 | ||
6 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 04E-6.8-32 | RFG-25054 | ||
R-410A | RFGD 05 | 1 – | 3 | 3/8 x 5/8 | 1/4 | RFGD 05E-3.5-22 | RFG-25055 |
2 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 05E-4.5-23 | RFG-25056 | ||
3 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 05E-7.0-24 | RFG-25057 | ||
4 – | 4 | 1/2 x 7/8 | 1/4 | RFGD 05E-8.6-25 | RFG-25058 | ||
5 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 05E-10.6-27 | RFG-25059 | ||
6 – | 5 | 5/8 x 7/8 | 1/4 | RFGD 05E-12.8-26 | RFG-25060 |
Note: The drawing represents a model with External Pressure Equalization
Orifice Overall Dimensions (in | ) | |
L1 | L2 | L3 |
1.63 | 2.34 | 1.48 |
